Netgear 48x10G/25G SFP28 and 8x100G QSFP28 Managed Switch

NETGEAR
Expected dispatch on : 0December 27 - 28
Part No XSM4556

These switches combine the configurability of a matrix switcher with the power and scalability of Ethernet to support hundreds of AV over IP endpoints. M4300 and M4500 switches offer IGMP Plus and greatly simplify system architectures at a dramatically lower price point

Quote

Details


Netgear 48x10G/25G SFP28 and 8x100G QSFP28 Managed Switch

Model Description : M4500 Managed Switch with 48x10G/25G SFP28 and 8x100G QSFP28 ports
Ordering Number : XSM4556
Acoustics : 68.0dB @ 25°C (77°F) - the noise is reduced when the two PSUs connect to a power source
Power Consumption (Max) : 394 Watts
25G SFP28 Ports : 48 SFP28 ports (1x10G default mode, other modes can be 1x25G and 1x10G)
100G QSFP28 Ports : 8 QSFP28 ports (1x100G default mode, other modes can be 1x50G, 1x40G)

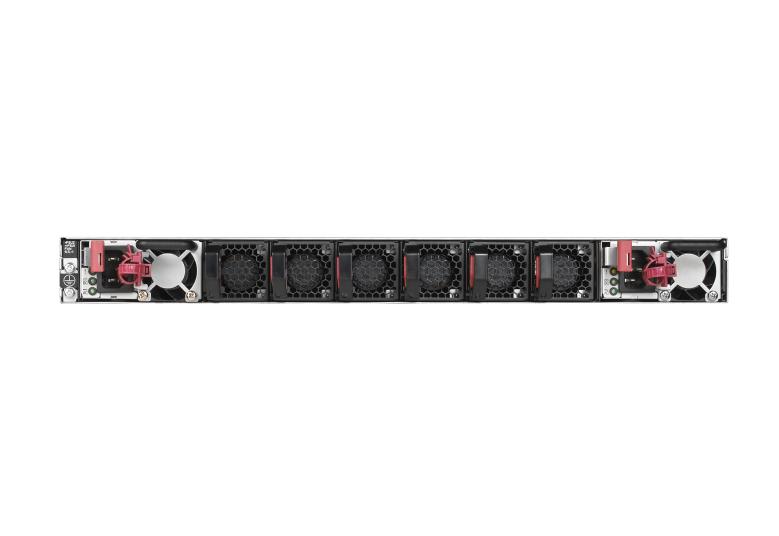

PSU and Fans : 2 modular Power Supply Units and 6 modular Fan Trays come pre-installed
Management : CLI only (local console, telnet port 1223 and SSH port 1234)
Management Ports : 1G Ethernet service port for out-of-band management (OOB, RJ45)
RS232 straight-through serial RJ45 for local management console


More Information


More Information
Part No XSM4556
GTIN-/EAN-Code 0606449145700
UPC 606449145700
Brand NETGEAR
Switches PoE
Ports 48
