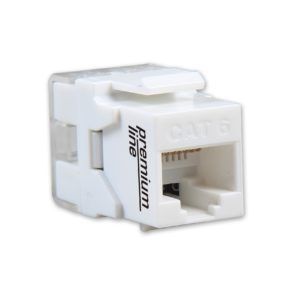

Premium-Line 106121010 Category 6 180° Unshielded Keystone Jack

Premium-Line 180° unshielded keystone jack is in classical design, it’s compatible with all Premium-Line unloaded modules. The dual type IDC accepts 22-26 AWG solid cables, easy terminated with 110 or Krone tools, supports T568 A&B wiring.
With its good & stable performance, this module earns the good sales result in the market.

FEATURES:
Conform to TIA/EIA-568.2-D, ISO/IEC 11801-1 and EN50173-1 specifications
Compact design is ideal for high density applications
Supports T568 A&B wiring & easy installation
Dual IDC connector can accept 22-26 AWG solid cables
Termination by 110 or Krone tools
Various of color optional
ETL Verified
RoHS compliant

APPLICATIONS:
1000BASE-TX Gigabit Ethernet
1000BASE-T Gigabit Ethernet
100BASE-TX Fast Ethernet.
10BASE-T Ethernet.
Voice, Video and other applications.

CHARACTERISTICS:
Dielectric Strength 1000V RMS for 1min
Current Rating 1.5Amp Max.
Insulation Resistance 10MΩ Min.
Contact Resistance 2mΩ per contact
Temperature Range -10° to 60° C
Humidity 10%~90%; non condensing
Material Flame Rating PC, UL94 V-0
Admissible Conductor 22AWG ~ 26AWG insulation wire
8pin contact in PCB Jack

Phosphor bronze: 50μ inch gold plated over nickel plated
in contact area

Operating life: Minimum 750 insertions

IDC Contacts 100μ inch nickel plated over phosphor bronze
Operating life: Minimum 250 re-terminations
