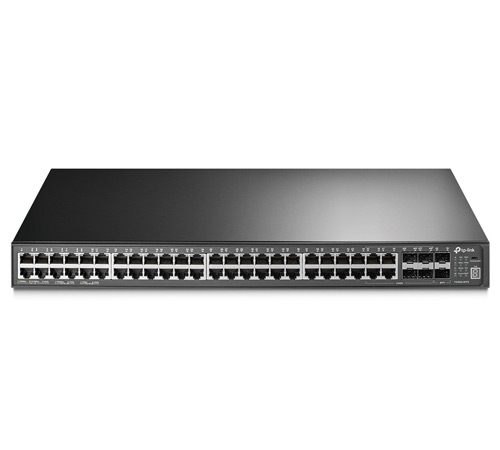

TP-Link JetStream 52-Port Gigabit Stackable L3 Managed Switch T3700G-52TQ TP-Link-T3700G-52TQ

Advanced L3 Features

T3700 series switches support Layer 3 routing protocols that include Static Routing, RIP, OSPF and VRRP, helping to build scalable, reliable networks. Multicast routing protocols such as PIM-SM and PIM-DM guarantee efficient routing for multicast groups.

Physical Stacking Technology

The switches are equipped with 2 fixed and 2 optional 10G SFP+ ports which can be used for stacking. T3700G-52TQ supports up to 8 switches for network simplification, and up to 384 GE, 32 Gigabit combo SFP and 32 10G SFP+ ports per physical stack, providing up to 1408Gbps total switching capacity for the network. With all units identified by a simple IP address, the stack can be easily configured and monitored.

Rich Out-of-band management port

T3700 series switches provide 3 kinds of out-of-band management ports: RJ45 console ports, Micro-USB console ports and RJ45 out-of-band management ports. Micro-USB console ports are designed for those laptop computers which do not support the RS232 (DB9) interface. Customers can use a USB cable to manage switches through the CLI (command-line interface). The RJ45 out-of-band management port is used solely for web management, leaving the RJ45 ports free for data transmission.
