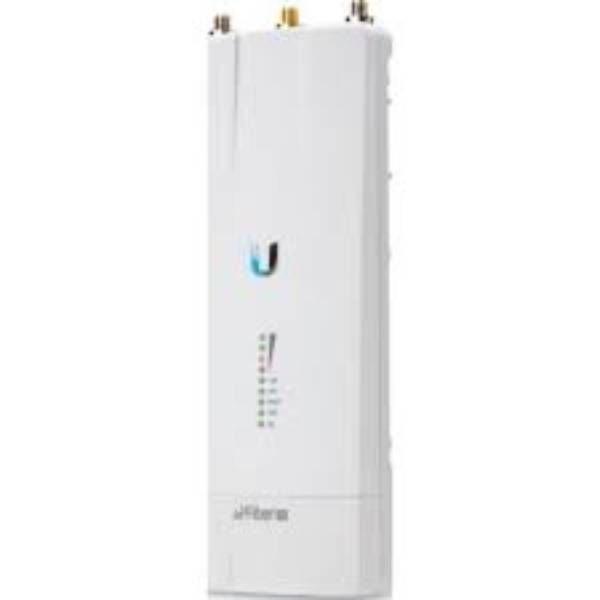

Ubiquiti Networks AF-5XHD 5 GHz Carrier Radio with LTU Technology AIR FIBRE AF5X HD

The AF-5XHD offers the following advanced features:
• Auto Output Power Enabled by default, the Auto Output Power
option causes the AF-5XHD to set the output power (EIRP) to the
appropriate level.
• Programmable Transmit Power The radio's transmit power
level can be programmed up to +29 dBm.
• Programmable DL/UL Ratio The AF-5XHD can split downlink
and uplink traffic and support asymmetric traffic as needed.
DL/UL ratios include 25%, 33%, 50%, 67%, and 75%. The DL/UL
Ratio is an essential part of GPS sync functionality; it must be the
same in all APs that you wish to synchronize.
• Configurable GPS Synchronization The AF-5XHD offers
configurable support for 2, 2.5, 4, and 5 ms frames. Timing is
compatible with all other synchronous systems, and 5 ms frame
length is compatible with airMAX networks.
• Split TX and RX Frequency1 The radio can operate on
different frequencies for TX and RX, allowing great flexibility for
interference avoidance.
• Split TX and RX Channel Bandwidth2 Support for different
channel bandwidths for TX and RX allows users to scale required
data capacity more efficiently.
• Adaptive Modulation up to 4096QAM1 Adaptive modulation
rates of up to 4096QAM are supported.
• Dual Redundant Gigabit Ethernet Ports with PoE The
AF-5XHD has two Gigabit Ethernet ports that can be used for
redundant PoE power.
• Bluetooth Wireless Configuration Use the built-in Bluetooth
interface for wireless configuration.
• AlignLock™ Antenna Aiming Guard This alerts the user when
the radio or antenna aiming is changed due to tampering,
impact, or storm damage.
• Redundant Images for Fail-Safe Configuration Creation of
backup firmware images ensures fail-safe configuration and
enhances reliability.
• Persistent Spectrum Analysis with Dedicated RX Perform
real-time spectral analysis for the full band on live links without
interrupting the link operation.
• Wide Voltage Range, Enhanced Surge Protection The
AF-5XHD has an operating voltage range of 19-50VDC3 and
provides enhanced surge protection.
