Ubiquiti Networks EdgeSwitch, ES?48?750W ES-48-750W

Ubiquiti
Expected dispatch on : February 15 - 16
Part No ES-48-750W

Available with 24 or 48 RJ45 Gigabit ports, the EdgeSwitch® delivers robust performance, PoE+ support and intelligent switching for growing networks.

48 x 10/100/1000 Mb/s Ethernet Ports
2 x 1/10 Gb/s SFP+ Ethernet Ports
2 x 1 Gb/s SFP Ethernet Ports
Power over Ethernet Compliant
70 Gb/s Non-Blocking Throughput
140 Gb/s Switching Capacity
750W Maximum Power Consumption
Dedicated LED Per Port Indicators
1U High Rackmount Compatible

Quote

Details


Ubiquiti Networks EdgeSwitch, ES?48?750W ES-48-750W

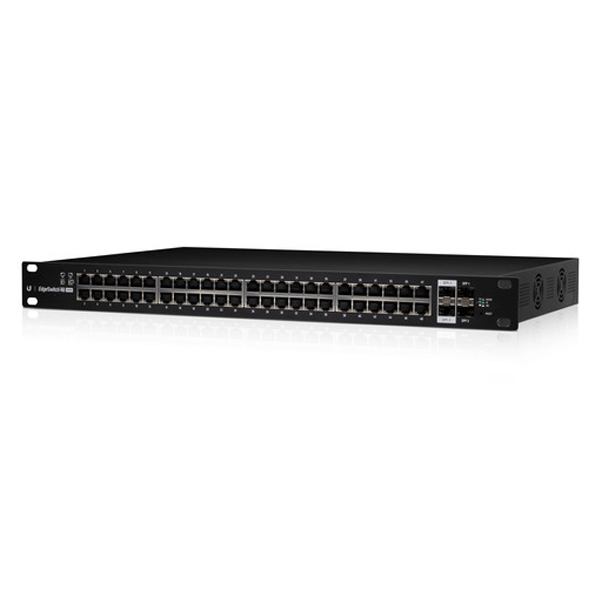

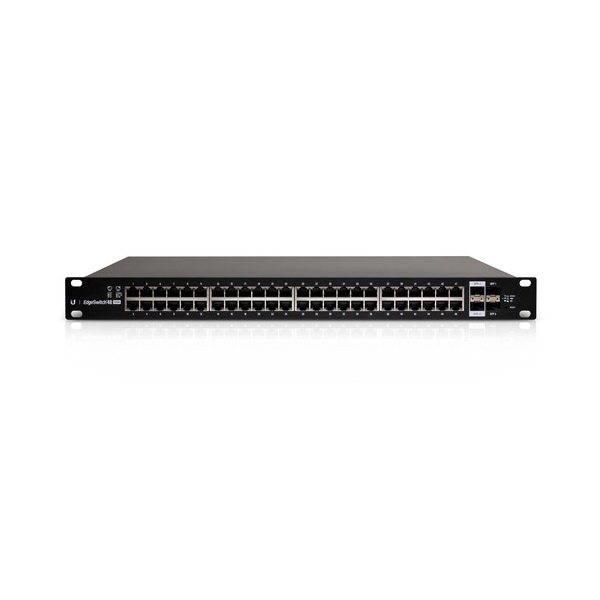

EdgeSwitch ES-48-750W 48 Port PoE Gigabit Ethernet Switch from Ubiquiti Technology is designed to be the backbone of your network. This high capacity Gigabit switch comes equipped with forty eight 10/100/1000 Mb/s Ethernet ports, two 1/10 Gb/s SFP+ Ethernet ports, and two 1 Gb/s SFP Ethernet ports. Each port includes dedicated LED indicators representing both PoE status and the speed, link, and activity of each port. This Layer 2 switch features a total non-blocking throughput of 70 Gb/s, a switching capacity of 140 Gb/s, and a forwarding rate of 104.16 Mp/s allowing for a fast uninterrupted flow of data through the switch out to end users.

Along with enhanced networking capabilities, the EdgeSwitch ES-48-500W features optical fiber backhaul made available through the two SFP+ ports. These ports support uplinks of up to 10 Gb/s to ensure a smooth, consistent flow of data. You can also power your PoE compatible devices directly from the EdgeSwitch with support for auto-sensing IEEE 802.af/at 24 V passive PoE. All of the features of the EdgeSwitch can be easily managed through the included advance user interface. Administrators can configure and monitor their network through an intuitive graphical user interface or convert to the command-line interface available through telnet and SSH.


More Information


More Information
Part No ES-48-750W
Dimensions Length (inch) 485
Dimensions Width (inch) 43.7
Dimensions Height (inch) 374.6
Country of Manufacture China
Brand Ubiquiti
Switches PoE
Port Count 29 to 52
Throughput up to 70 Gbps
