UMA-D

Name: UMA-D
Brand: Ubiquiti
SKU: Directional Dual-Band Antenna for UAP-AC-M
Availability: InStock
Rating: 5 (1 reviews)

Be the first to review this product

Expected dispatch on : 0December 27 - 28

Part No Directional Dual-Band Antenna for UAP-AC-M

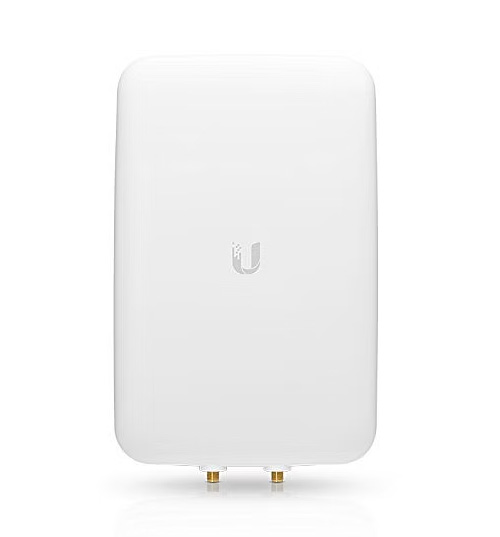

The UniFi Antenna, model UMA-D, is an optional mesh antenna designed to work with the UniFi® AC Mesh AP, model UAP-AC-M. With dual-band support, the UMA-D expands range coverage and provides customized pattern shaping. It is available in single- and five-packs.

Quote

Details

UMA-D

Dimensions: 201.3 x 128.0 x 32.5 mm (7.93 x 5.04 x 1.28")
Weight: (with Mount) (without Mount): 480 g (16.93 oz), 400 g (14.11 oz)
Enclosure: Outdoor UV Stabilized Plastic
RF Connections: (2) RP-SMA
Supported Frequency Range: 2.4 - 2.5 GHz, 5.1 - 5.9 GHz
HPOL Beamwidth 2.4 GHz,5 GHz: 90°,45°
VPOL Beamwidt: 2.4 GHz,5 GHz: 90°,45°
Elevation Beamwidth 2.4 GHz,5 GHz: 90°,45°
Maximum VSWR: 2.5:1
Polarization: Dual-Linear
Cross-Pol Isolation 2.4 GHz,5 GHz: 25 dB,30 dB
Antenna Gain 2.4 GHz,5 GHz: 10 dBi,15 dBi
Mounting Wall/Pole : (Kits Included)
