Yealink Mtouch - Videoconferencing Control Touch Pad - Microsoft Teams Certified USB 8-Inch Touch Pad

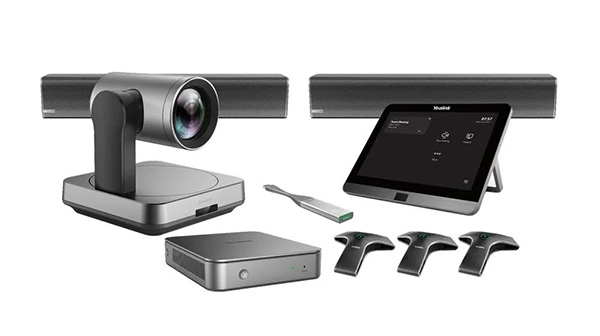

Package Content
• MCore Mini-PC
• MTouch II touch panel
• UVC84 USB PTZ camera
• Two or three VCM34 array microphones (optional)
• One or two Yealink soundbars (optional)
• WPP20 wireless presentation pod (optional)

Preload
• Windows 10 IoT Enterprise X64
• Windows 10 IoT Enterprise License
• Microsoft Teams Rooms App, support Skype for
   Business on-premise/online and Teams meetings
• Yeallink RoomConnect

MCore Mini-PC
• 8th-gen Intel® QUAD-CORE i5
• Memory: 8GB (2 x 4GB)
• Storage: 128GB SSD
• 2 x HDMI video output with CEC supported
• Bluetooth and Wi-Fi
• 1x Yealink VCH port (RJ45), connect to MTouch II
• 4 x USB3.0 Type-A
• 1 x 10/100/1000M Ethernet port
• 1 x Power port
• 1 x Security lock slot
• Integrated cable management

MTouch II touch panel
• 8-inch IPS screen
• 1280 x 800 resolution
• 10-point capacitive touch screen
• 3.5mm headset jack
• Human Motion Sensor
• Angle adjustable bracket (28° ~ 50°)
• 1080P/30FPS FHD for sharing
• Support wired and wireless content sharing
• Built-in Wi-Fi AP for Yealink wireless presentation device
• HDMI/USB-C HD video input

UVC84 USB PTZ Camera
• 4K camera
• 12x optical zoom
• Field of view (diagonal): 80°
• Auto Framing
• Camera presets
• Pan range: 200°
• Tilt range: 130°
• 1 x Line-out (3.5mm)
• 1 x Yealink Microphone port (RJ-45)
• 1 x USB 2.0 Type-B
• 1 x Power port
• 1 x Security lock slot
• 1 x Reset slot

VCM34 Array Microphone
• Built-in 3-microphone array
• 360° 20ft (6-meter) voice pickup range
• Cascade connection up to 6 units
• Mute button with bicolor LED

Yealink Soundbar
• Frequent response：100Hz - 20KHz
• S/N：≥70dB
• 1 x Line-in (3.5mm)

Package Features (2 x VCM34)
• N.W/CTN: 10.4Kg
• G.W/CTN: 11.6Kg
• Carton Meas: 595mm x 535mm x 320mm

Package Features(3x VCM34)
• N.W/CTN: 12.9Kg
• G.W/CTN: 14.1Kg
• Carton Meas: 595mm x 535mm x 320mm

Package Features(without audio)
• N.W/CTN: 6.6Kg
• G.W/CTN: 7.3Kg
• Carton Meas: 595mm x 393mm x 258m
