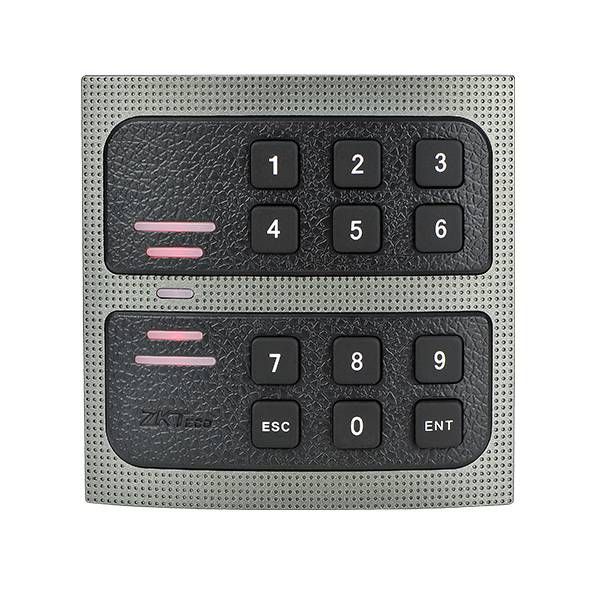

ZKTECO Wiegand Card reader Access Control KR500 Series KR502-E/M

RFID/IC Card Readers
Read Range
KRxxx-E: Up to 10CM
KRxxx-M: Up to 5CM
Reading Time - ≤200ms
Input Port
External LED Control
External Buzzer Control
Output Format
KRxxx-E: 26bit Wiegand (Default)
KRxxx-M: 34bit Wiegand (Default)
Power/Current - DC 6-14V / Max.70mA
LED - Red and Green LEDs
Operating Temperature - -20°C to 65°C(-10° to +70°C)
Material - ABS+PC with texture
Operating Humidity - 10% to 90% relative humidity non-condensing
Beeper - Yes
Index of Protection
KR500-E/M: IP65
KR501-E/M: IP65
KR502-E/M: IP64
KR503-E/M: IP65
